Friday, August 13, 2010

Taking A Hint

A new client of mine needed some performance tuning in several of his stored procedures. In most cases, it involved creating an appropriate index, or changing a table-valued function call to an equivalent inline TVF call, or just correcting the predicates in the WHERE clause to make it more SARGable. But there were a couple times when I could eke out even more performance by doing a little something extra.

And what “extra thing” did I give to those queries? I’ll give you a hint: I gave them a hint.

I Want It FAST

For example, there was one procedure that did a little calculation to come up with a particular date, and then it needed to pull out some information from some tables based on a 1-day date range from that date. It was something like this query in AdventureWorks:

declare @DesiredDateAtMidnight datetime = '20010709'
declare @NextDateAtMidnight datetime = dateadd(day,1,@DesiredDateAtMidnight)
select OrderID=h.SalesOrderID
from Sales.SalesOrderHeader h
left join Sales.SalesTerritory t on h.TerritoryID=t.TerritoryID
left join Sales.CreditCard c on h.CreditCardID=c.CreditCardID
where OrderDate>=@DesiredDateAtMidnight
and OrderDate<@NextDateAtMidnight
order by h.SalesOrderID
OrderID OrderDate TerritoryName CardType CardNumber CardExpire TotalDue
------- ---------- --------------- ------------- -------------- ---------- ---------
43728 2001-07-09 Southwest Distinguish 55553397232060 03/2007 3953.9884
43729 2001-07-09 United Kingdom ColonialVoice 77771647096870 03/2006 3756.989
43730 2001-07-09 Southwest Distinguish 55552313505236 09/2007 3756.989
43731 2001-07-09 Australia Vista 11114001441348 11/2006 3953.9884
43732 2001-07-09 Australia Distinguish 55557723662910 11/2007 3729.364
43733 2001-07-09 Northwest SuperiorCard 33338859457470 04/2008 3953.9884

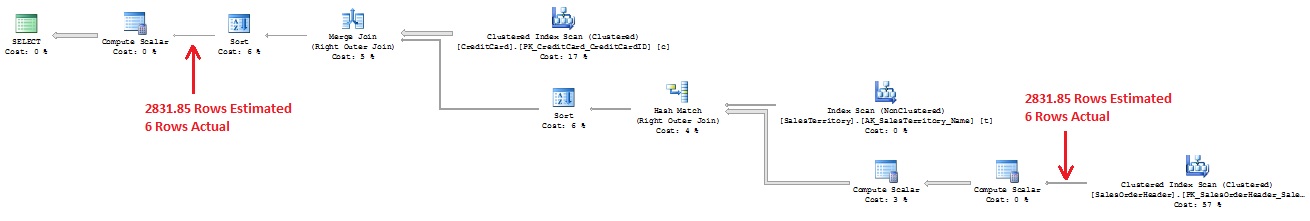

That particular query produces this (actual) execution plan (click on the plan to see the full-size image in a new window):

Original Query Plan

The optimizer decided to approach this by doing a Merge Join between the CreditCard table (which has 19118 rows) and the result of a Join of the Territory and the SalesOrderHeader tables. Note that it had to SORT the Territory/SalesOrderHeader data by CreditCardID so that it could do that Merge Join. And then, after that, it had to SORT the final data by SalesOrderID, because that’s what the ORDER BY clause of the query called for.

Note, also that the optimizer estimated that my WHERE clause would pull 2831.85 rows (out of a total of 31465) from SalesOrderHeader. How did it arrive at this figure? Since the @DesiredDateAtMidnight and @NextDateAtMidnight variables had values that were unknown to the query, it had to make assumptions. The optimizer assumes that equality-based predicates are 10% selective and inequality-based predicates are 30% selective. Since I had two inequality-based predicates, it assumed that together they would be 30% * 30% = 9% selective. And, sure enough, 31465 total rows * 9% = 2183.85 rows.

But the final result of the query was only 6 rows.

This is the situation that I was in with my client’s query. The optimizer grossly over-estimated how many rows it would find, and so it came up with a query that was efficient for handling that many rows. But I knew that a day’s worth of data from the particular tables that I was querying would produce about an average of 10 rows, not thousands of rows.

So I gave the optimizer a hint… specifically I gave it a FAST 10 hint, indicating that it should put together a plan that would return 10 rows as fast as possible. Adding OPTION (FAST 10) to the end of our query above produces this (actual) execution plan:

Query Plan With OPTION (FAST 10) Hint

Since the optimizer now knew that only 10 rows were estimated, it could put together a more appropriate plan for that small result. Note that there are Nested Loop Joins rather than a Merge Join and a Hash Join, and there are no more Sort operators, since the main driving table of the query is the SalesOrderHeader Clustered Index, which is already sorted by SalesOrderID.

I could have used the OPTION (RECOMPILE) hint instead, which would allow the optimizer to “sniff” the values of the variables and put together an appropriate plan based on their values, but that would involve having to recompile the plan from scratch every time this procedure was run, and therefore the plan would not go into the cache for others to use. The OPTION (FAST 10) plan, on the other hand, would be cached for others.

The Profiler statistics for the two queries are as follows:

Description CPU Reads Duration QueryCost Relative%
No Hint Provided 63ms 889 288ms 0.9698090 96%
OPTION (FAST 10) 31ms 775 173ms 0.0450217 4%
The CPU is so low for both queries that it’s really meaningless to compare them, but you can see that the Number of Reads and the Duration are lower by introducing the hint. The optimizer figured the second approach was much cheaper, but that’s mainly because, as far as it was concerned, it was comparing a 2184-row query to a 10-row query.

In my particular case with the client, the query was a bit more complicated, so the difference in CPU and Reads was much more dramatic. By adding the FAST 10 hint, the CPU was decreased by 60% and the Reads were decreased by 75%.

Using the FORCE

Another query that I wanted to tune incorporated an array-splitting (inline) table-valued function that used a Numbers table.

Let’s put together an example in AdventureWorks to illustrate what I was dealing with. First, create a Numbers table consisting of the integers from 1 to 1,000,000 and create a clustered index on it:

(c) as (select 0 from (values (0),(0),(0)) x(c)) --3 Rows
,L1(c) as (select 0 from L0 a, L0 b, L0 c) --27 Rows (3x3x3)
,L2(c) as (select 0 from L1 a, L1 b, L1 c) --19683 Rows (27x27x27)
,L3(c) as (select 0 from L2 a, L2 b) --387,420,489 Rows (19683x19683)
,NN(n) as (select row_number() over (order by (select 0)) from L3)
select Number=isnull(convert(int,n),0) --Force it to be a "not null" column
into dbo.Numbers
from NN
where n<=1000000
alter table dbo.Numbers
add constraint PK_Numbers
primary key clustered (Number)
with (fillfactor=100)
Next, create an inline table-valued function that would use that Numbers table to split a comma-delimited list of integers:

create function dbo.ufn_SplitIntArray
@List varchar(max)
,@Delimiter varchar(10)
returns table
from dbo.Numbers with (nolock)
apply (select ItemPos=Number) F1
cross apply (select DelimPos=charindex(@Delimiter,@List+@Delimiter,ItemPos)) F2
cross apply (select String=rtrim(ltrim(substring(@List,ItemPos,DelimPos-ItemPos)))) F3
where ItemPos<=convert(int,len(@List))
and substring(@Delimiter+@List,ItemPos,1)=@Delimiter
You can see how this function is used in the example below:

select *
from dbo.ufn_SplitIntArray('123,456,789',',')
Now that we have that in place, we can see a query that makes use of this function. The following will take a list of TerritoryID’s and will list the SalesOrderHeader rows that are in those Territories, along with the Territory Description:

declare @TerritoryList varchar(max) = '2,3,5'
select h.SalesOrderID
from dbo.ufn_SplitIntArray(@TerritoryList,',') a
join Sales.SalesTerritory t on a.Item=t.TerritoryID
join Sales.SalesOrderHeader h on t.TerritoryID=h.TerritoryID
order by h.SalesOrderID
SalesOrderID OrderDate TerritoryID TerritoryName PurchaseOrderNumber TotalDue
------------ ---------- ----------- ------------- ------------------- ----------
43659 2001-07-01 5 Southeast PO522145787 27231.5495
43660 2001-07-01 5 Southeast PO18850127500 1716.1794
43667 2001-07-01 3 Central PO15428132599 8095.7863
74193 2004-07-02 5 Southeast NULL 43.0729
74548 2004-07-13 5 Southeast NULL 38.675
75103 2004-07-31 5 Southeast NULL 44.1779
(1223 rows total)

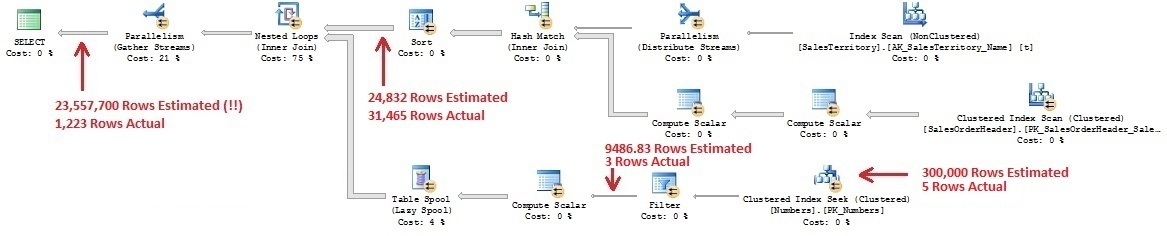

And here is the (actual) execution plan for that query:

Original Query Plan

Notice that Parellelism is involved in this plan. The optimizer figured our query was so expensive that it decided it was cheaper to spread the burden of the query across the 4 processors in my system.

As far as how to attack the query, the optimizer put together a plan that starts by scanning the SalesTerritory table and Hash Joins it with the SalesOrderHeader table, resulting in an estimated 24,832 rows.

It also scans the Numbers table, first satisfying the predicate of

where Number<=convert(int,len(@TerritoryList))
Since the optimizer has no idea what is in @TerritoryList, it makes an inequality-based assumption that the predicate will have a selectivity of 30%, and therefore it estimates that it will produce an estimated 1,000,000 * 30% = 300,000 rows. In reality, it only produced 5 rows.

Then it applies a filter to those rows to pull the positions of the comma-delimited numbers in @TerritoryList… in other words a filter to satisfy the predicate of

where substring(','+@TerritoryList,Number,1)=','
It estimates that those 300,000 rows will filter down to 9486.83 (I have no idea how it arrived at this 3.16% selectivity figure). In reality, it only produced 3 rows. Finally, the optimizer plans on storing those rows into a Spool for repeated access by the Nested Loops operator.

Now the Nested Loops operator will match up each of the estimated 24,832 rows with each of the estimated 9486.83 rows from the spool and will find the ones that satisfy this JOIN predicate (which is implied by incorporating our inline table-valued function in our query):

) = SalesTerritory.TerritoryID
Since that’s an equality predicate, it assumes 10% selectivity, so it comes up with a final estimated result of 24,832 * 9486.83 * 10% = 23,557,700 rows for the final result. Wow! In reality, the Nested Loops will match 31,465 rows with the 3 rows in the spool (producing 94,395 matches) and end up only finding 1223 that satisfy the JOIN predicate (a selectivity of only 1.3%).

The bottom line here is that the optimizer got scared by that million-row table of Numbers and grossly overestimated how many values it would pull from that table and so put together a plan to most efficiently handle a final product of over 23 million rows. That’s why it started by processing the 31,465-row SalesOrderHeader table and spooled the estimated 9486.83 rows from the Numbers table that it would match up with each of those.

But we know that, in reality, our @TerritoryList will only consist of a small handful of comma-delimited values, so the plan should ideally start with the Numbers table, producing the positions of the values in @TerritoryList and, for each of those values, look them up in the SalesTerritory and then find the rows in SalesOrderHeader with that TerritoryID.

In other words, it should process the plan in exactly the order that I specified in the query:

from dbo.ufn_SplitIntArray(@TerritoryList,',') a
join Sales.SalesTerritory t on a.Item=t.TerritoryID
join Sales.SalesOrderHeader h on t.TerritoryID=h.TerritoryID
Well, there’s a hint for that! If we add an OPTION (FORCE ORDER) to our query, we end up with a completely new (actual) execution plan:

Query Plan With OPTION (FORCE ORDER) Hint

And here are the statistics that Profiler gives us in comparing the two plans:

Description CPU Reads Duration QueryCost Relative%
No Hint Provided 1499ms 63,783 854ms 1167.11 27%
FORCE ORDER 141ms 3,660 314ms 3149.68 73%
Nothing changed in what the optimizer estimates… it still thinks the query will produce 23 million rows. And it obviously thinks we’re completely insane to do a FORCE ORDER, because it estimates that the cost will almost triple by doing it this way. But you and I know better, and by introducing that hint, we decreased the CPU and Reads dramatically.

But this new plan still has Parallelism in it. The optimizer thought we needed it because it thinks the cost is so ridiculous that it will be cheaper to split up the query among the 4 processors in my computer. And, interestingly enough, it figures that by doing that split, it can introduce Sort operators to order the two main streams by TerritoryID and do a Merge Join, and then turn around and do a Sort on SalesOrderID for the final result.

Well, we know that our final result is not going to be that large… it’s certainly not going to be anywhere even close to 23 million rows! So let’s just get rid of the Parallelism. We’ll add one additional hint (MAXDOP 1) to our query in order to force it to only use one processor:

option (force order, maxdop 1)
Here’s the (actual) execution plan that results from that hint:


See how simple that new plan is? Now how does that compare to the previous two plans?:

Description CPU Reads Duration QueryCost Relative%
No Hint Provided 1499ms 63,783 854ms 1167.11 12%
FORCE ORDER 141ms 3,660 314ms 3149.68 31%
FORCE ORDER, MAXDOP 1 31ms 741 175ms 5788.61 57%
The optimizer thinks we’ve completely lost our mind, since it estimates the Cost is 5788.61… over 5 times more expensive than the plan it would have produced without hints. It’s probably snickering… laughing behind our backs and thinking, “Your stupid plan with hints will take over an hour and a half to run, but if you let me do my job, I can do it all in only 20 minutes!”

But that couldn’t be further than the truth. By introducing the hints, we reduced the CPU by 98% and reduced the Reads by 99%.

One More LOOPy Enhancement

But wait! We can even do better!

The plan still involves a Clustered Index Scan of the entire SalesOrderHeader table. If we can create an index on TerritoryID and INCLUDE the other columns required by the query, then we could SEEK into that index by TerritoryID rather than SCANning it.

So let’s create an index… Note that the TotalDue column in SalesOrderHeader is actually a computed column based on SubTotal and TaxAmt and Freight, so we have to INCLUDE those columns:

create index ix_Terr_iOrdDt_iPO_iTDue
on Sales.SalesOrderHeader
include (OrderDate,PurchaseOrderNumber,SubTotal,TaxAmt,Freight)
Now let’s run our query (with our two hints) and see if that index made a difference in the plan:

Query Plan With OPTION (FORCE ORDER, MAXDOP 1) Hint And New Index

Hmmm… the only thing that changed was that it was SCANning our new index rather than SCANning the Clustered Index. That improves the query somewhat, decreasing the number of reads, because our new index is smaller in terms of number of pages:

Description CPU Reads Duration
No Hint Provided 1499ms 63,783 854ms
FORCE ORDER 141ms 3,660 314ms
FORCE ORDER, MAXDOP 1 31ms 741 175ms
Add New Index 31ms 232 172ms
But we created that index to take advantage of the TerritoryID. We wanted it to SEEK into the index rather than SCAN the entire thing.

So another hint to the rescue!

This time we will tell the optimizer that we only want it to use LOOP JOINs. So here’s our new query with all the hints involved:

declare @TerritoryList varchar(max) = '2,3,5'
select h.SalesOrderID
from dbo.ufn_SplitIntArray(@TerritoryList,',') a
join Sales.SalesTerritory t on a.Item=t.TerritoryID
join Sales.SalesOrderHeader h on t.TerritoryID=h.TerritoryID
order by h.SalesOrderID
option (force order, maxdop 1, loop join)

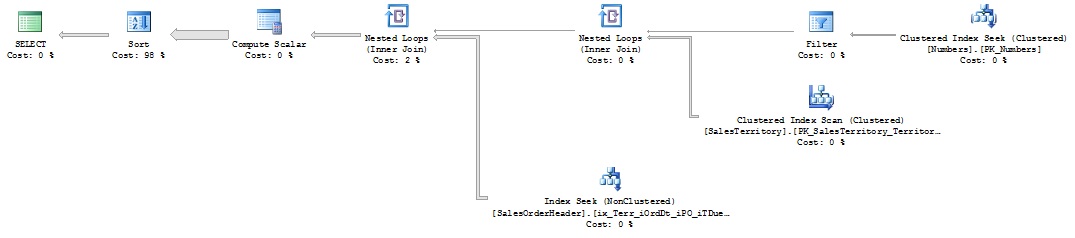

And here’s the new (actual) execution plan that it produces:


Note that we now have a Nested Loops Join that now SEEKs into our new index. And the results?

Description CPU Reads Duration
No Hint Provided 1499ms 63,783 854ms
FORCE ORDER 141ms 3,660 314ms
FORCE ORDER, MAXDOP 1 31ms 741 175ms
Add New Index 31ms 232 172ms
Add LOOP JOIN Hint 16ms 69 144ms
Hah! So we’ve ultimately decreased the Reads by 99.9% from 63,783 down to a measly 69. That’s the way it should be with a straightforward query like this one.

Thank goodness for the existence of hints. They’re one more effective tool we can use to beat the optimizer into submission persuade the optimizer to form a plan that we know is best for our query.
